Sub-C NiMH Battery

20 Years SC NiMH Vertical Factory

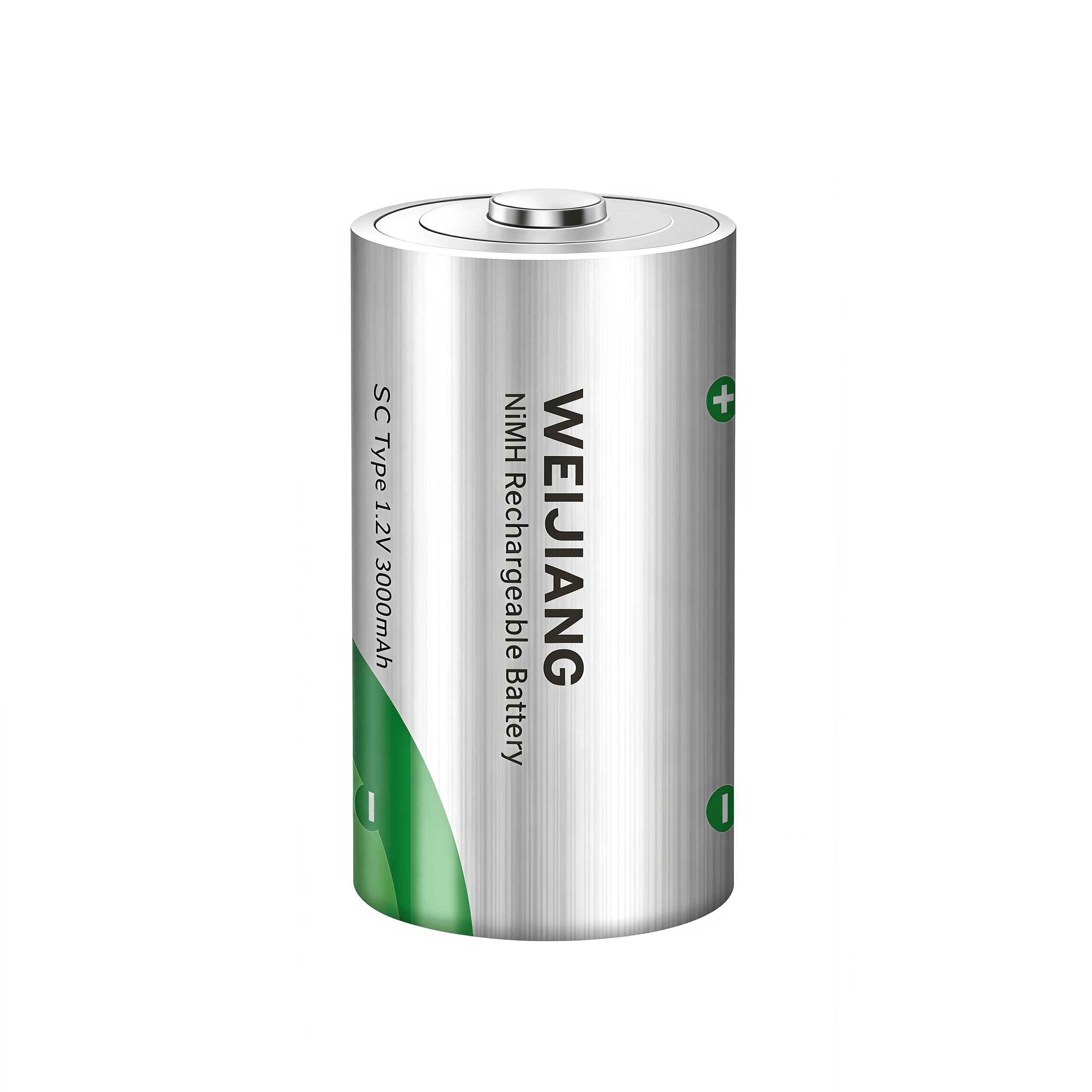

SC Size Ni-MH Rechargeable Cells
1800~3600mAh High Power 1.2V SC Cells

WEIJIGNG original SC series nickel metal hydride cells, all parameters strictly from official delivery specs. Standard dimension D10.0mm × H43.0mm, nominal voltage 1.2V, capacity range 1800/2000/2200/2500/2800/3600mAh. Max 1C continuous discharge, internal resistance ≤30mΩ, most models ≥500 IEC cycle life. Support 0.1C 16h standard charge & 0.5C 2.4h fast charge with -ΔV temperature protection. Low self-discharge, 60% capacity retention after 28 days storage. Custom nickel tabs & welding lugs for power tools, model aircraft, medical equipment, emergency lighting, vacuum cleaners. Full CE, UL, RoHS, UN38.3 certifications for global OEM & wholesale clients.

Get Free Spec & Sample

Full Specifications of SC Size Ni-MH Cells (Official Spec Data)

Filter By Capacity:

Format	Model No.	Rated Capacity(mAh)	Min Capacity(mAh)	Height(mm)	Diameter(mm)	Std Charge(mA)	Std Charge(h)	Rapid Charge(mA)	Rapid Charge(h)	Weight(g)	Max Discharge	Cycle Life	Target Application
SC	WJ H-SC1800P	1800	1700	43.0	10.0	180	16	900	2.4	40.0	1800mA(1C)	≥500	RC Model, Mini Household Tools
SC	WJ H-SC2000P	2000	1900	43.0	10.0	200	16	1000	2.4	42.0	2000mA(1C)	≥500	Wireless Handheld Devices
SC	WJ H-SC2200P	2200	2100	43.0	10.0	220	16	1100	2.4	44.0	2200mA(1C)	≥500	Small Power Tool Wholesale
SC	WJ H-SC2500P	2500	2400	43.0	10.0	250	16	1250	2.4	49.5	2500mA(1C)	≥500	High Drain RC Equipment
SC	WJ H-SC2800P	2800	2700	43.0	10.0	280	16	1400	2.4	53.0	2800mA(1C)	≥500	Industrial Vacuum Cleaner
SC	WJ H-SC3600P	3600	3500	43.0	10.0	360	16	1800	2.4	60.5	3600mA(1C)	≥400	High Power Power Tools

Core Performance of SC Ni-MH Cells (Per Factory Spec)

1800~3600mAh Full SC Series

Complete capacity lineup for high drain power equipment

Up To 500 IEC Standard Cycles

SC1800~2800 ≥500 cycles; SC3600 ≥400 cycles

0.5C Fast Charge Within 2.4h

Require -ΔV & temperature charging protection

60% Capacity After 28 Days Storage

20℃ storage self-discharge standard per spec sheet

-10℃ ~ 55℃（MAX） Discharge Range

Stable output under cold & high temperature environment

Full Safety Passed Test Items

Short circuit, vibration, drop test without explosion

Factory Supply & Product Advantages

Main Application Fields

For Power Tool Manufacturers

1C max continuous discharge for high torque tools
Custom nickel tab & spot welding terminals
Tight capacity sorting tolerance ±5mAh
Complete cycle & safety test reports supplied

For RC & Lighting Wholesalers

Low self-discharge for long shelf inventory
Multiple capacity match different power demands
Stable voltage output under low temperature
Full export certificates: MSDS, UN38.3, RoHS

Full Technical Specs From Official Datasheets

Nominal Voltage: 1.2V per single SC cell
Uniform Dimension: D10.0mm × H43.0mm
Internal Impedance: ≤30mΩ @ 1KHz full charged
Standard Charge: 0.1C constant current, 16 hours
Rapid Charge: 0.5C constant current, ~2.4 hours (protection needed)
Discharge Cut-off Voltage: 1.0V per cell
Self-discharge: ≥60% residual capacity after 28 days (20℃)
Storage Temp: -20~55℃ (（MAX）within 30 days storage)
Certifications: CE, UL, RoHS, REACH, UN38.3, BSCI
Warranty: 1 year against material & process defects

Wide Application For SC Ni-MH Cells

Emergency Exit Light Portable Power Tools Industrial Backup Battery Medical Monitoring Equipment Solar Small Storage Pack Outdoor Searchlight Marine Backup Power Measuring Instruments Stage Lighting Equipment Gas Detector Devices Portable Vacuum Cleaner Wireless Lawn Mower

20 Years Professional SC NiMH Cell Factory

Independent SC automatic winding & formation production lines
Dedicated lab for high drain, cycle & self-discharge testing
Full SC capacity series in stock for fast delivery
Provide original official SC spec sheets for all models
OEM nickel tab, shrink tube & battery pack assembly service
Export to 60+ countries as professional power cell supplier
